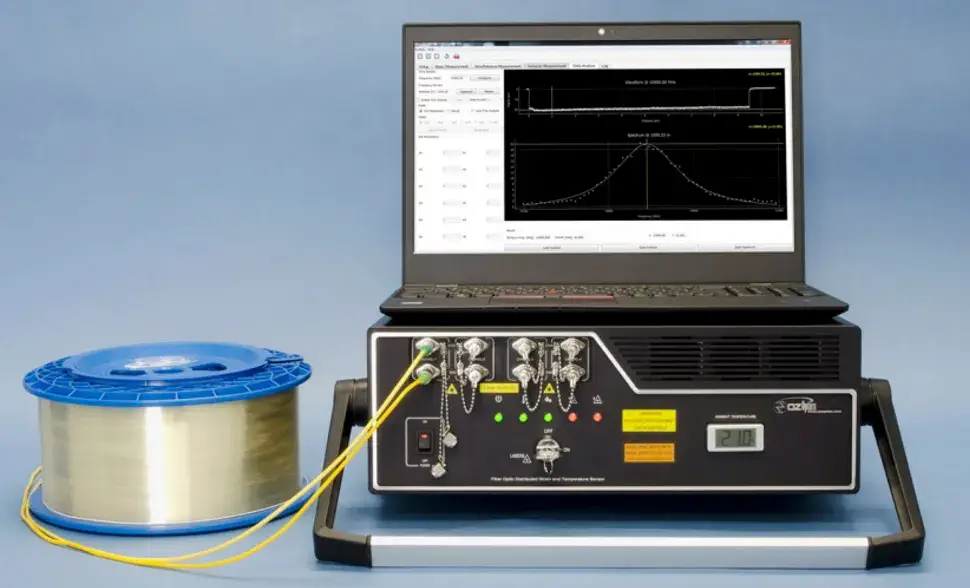

Foresight™ Distributed Fiber Optic Strain and Temperature Sensors (DSTS)
High-performance Brillouin-based distributed sensing system for continuous measurement of strain and temperature along the full length of an optical fiber, enabling early detection of structural changes and leak-related anomalies in critical infrastructure.
About OZ Optics Ltd.
Global leader in fibre optic sensing and photonic technologies, specializing in advanced distributed strain and temperature sensing systems (Foresight™ DSTS) for critical infrastructure, telecommunications, and industrial monitoring applications.
KEY FEATURES
- Foresight™ Distributed Fiber Optic Sensing Systems
- Brillouin Optical Time Domain Analysis (BOTDA)
- Brillouin Optical Time Domain Reflectometry (BOTDR)
- High-precision strain and temperature monitoring solutions
OVERVIEW - OZ Optics’ Foresight™
Distributed sensing along the entire fibre length
OZ Optics’ Foresight™ series of Fiber Optic Distributed Strain and Temperature Sensors (DSTS) uses Brillouin scattering in optical fibres to measure changes in both strain and temperature along the length of a sensing fibre.
A sensing cable based on standard telecom single-mode fibre can be deployed along pipelines or embedded in structures. This allows operators to detect where strain or temperature changes occur and address potential failures before they happen.
This technology is widely used in oil & gas pipelines, civil structures, and long-distance infrastructure monitoring applications.
KEY BENEFITS
Value of Foresight™ Distributed Sensing
Continuous Full-Length Monitoring
Replaces point sensors with continuous measurement along entire fiber
Early Failure Detection
Identifies strain and temperature anomalies before structural failure
Precise Localization
Pinpoints exact location of abnormal changes along long distances
Cost Efficiency
Uses standard telecom fiber infrastructure
Flexible System Integration
Supports integration into external monitoring systems via software interfaces
High Reliability in Harsh Environments
Suitable for long-term deployment in oil & gas and civil infrastructure
KEY FEATURES
Foresight™ System Capabilities
Distributed Brillouin Measurement
Uses stimulated Brillouin scattering to provide continuous measurement along the fibre.
Simultaneous Strain & Temperature Sensing
Measures strain and temperature simultaneously and independently, enabling separation of thermal effects from mechanical stress.
High Spatial Resolution
Provides high-resolution distributed measurements, enabling precise localization of anomalies along long distances.
Long-Range Operation
Supports monitoring of long sensing lengths up to 100–160 km depending on configuration.
Telecom Fiber Compatibility
Uses standard single-mode telecom fiber, reducing deployment cost and leveraging existing infrastructure.
Fault Detection Capability
Detects: Strain changes , Temperature variations , Structural deformation , Early-stage failure conditions
PRODUCT ARCHITECTURE (BOTDA / BOTDR / COMBO)
Foresight™ System Configurations
BOTDA Module
- Uses stimulated Brillouin scattering
- High spatial resolution (down to sub-meter scale)
- Suitable for high-accuracy distributed sensing over long distances
BOTDR Module
- Based on spontaneous Brillouin scattering
- Enables sensing even if fibre is broken (single-end measurement capability)
BOTDA + BOTDR Combo System
- Combines both methods in a single platform
- Allows switching between modes if fibre break occurs
- Ensures continuous monitoring capability
PERFORMANCE HIGHLIGHTS
Technical Performance (system-level)
- Spatial resolution down to 0.1 m (BOTDA mode)
- Long sensing range up to ~100–160 km depending on configuration
- Real-time distributed measurement of strain and temperature
- Multi-channel monitoring capability available
- Software integration via DLL for system integrators
Hazardous Area Cameras
Surveillance cameras designed for high-risk environments where explosive atmospheres may be present. Built for reliability in oil refineries, offshore rigs, and processing facilities requiring certified protection standards.
Safe Area & Marine Cameras
Ideal for onshore and offshore safe-area and marine locations, DNV-certified COEX cameras protect coastal areas, ports, harbours, container and cargo vessels, drillships, and LNG carriers worldwide.
Thermal Cameras
From offshore threat detection to process monitoring and perimeter intruder detection, COEX thermal cameras are protecting people, processes, and assets throughout the world.
Pipeline and Energy Infrastructure Monitoring
Foresight™ DSTS systems are designed for critical infrastructure where failure can lead to major environmental or economic impact.
Pipeline Monitoring
- Detects strain changes along oil and gas pipelines
- Identifies deformation, buckling, and stress accumulation
Leak-Related Thermal Detection
- Detects temperature anomalies associated with leakage events
- Enables early warning before rupture or failure

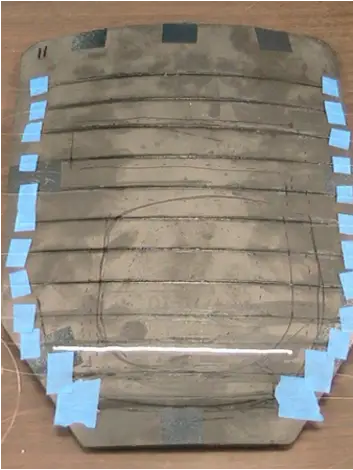

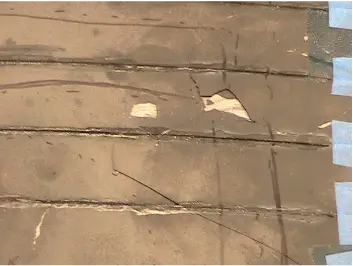

Structural Integrity Monitoring
- Monitors large structures such as dams, bridges, and pipelines
- Detects micro-cracks and corrosion-related deformation
Safety & Security Applications
- Detects external interference or ground disturbance
- Supports perimeter and infrastructure protection
SOLUTION VALUE
Added Value for Infrastructure Operators
- Improved pipeline safety and integrity management
- Early leak detection and reduced environmental risk
- Reduced maintenance and inspection costs
- Faster fault localization and response
- Continuous real-time situational awareness
- Extended asset lifecycle through predictive monitoring
SYSTEM INTEGRATION
SCADA & Monitoring Integration
Foresight™ systems provide data outputs that can be integrated into:
- SCADA systems
- Asset integrity platforms
- Industrial monitoring dashboards
